砂石分离机的主要构成部件

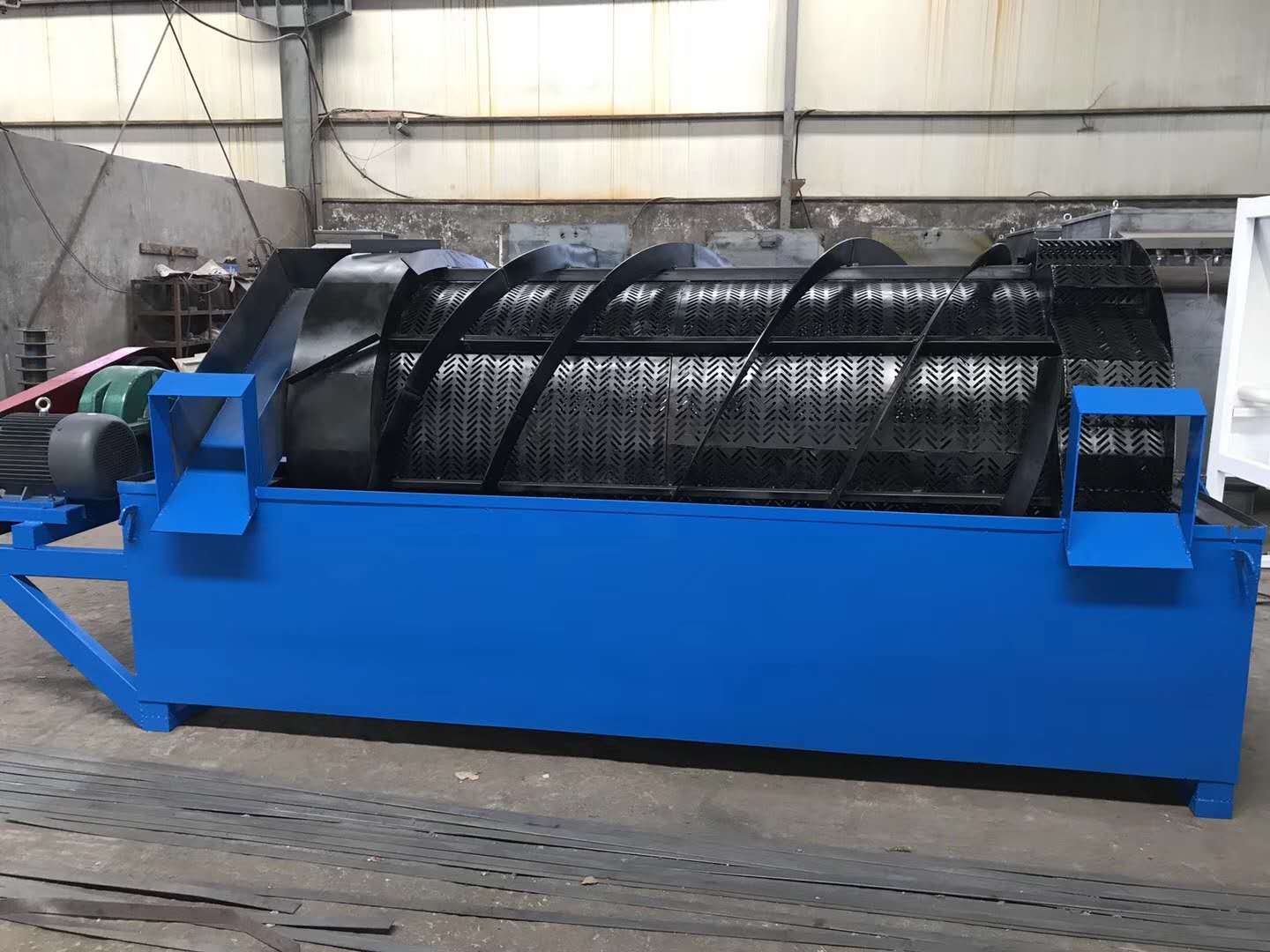

砂石分离机的主要构成部件有:1.底仓 2.上机壳 3.滚动筛 4.内螺旋 5.外螺旋 6.轮式洗砂机 7.内轮式洗石机 8.齿轮箱 9.电动机 10.电器控制系统 11.供水系统 12.导料槽组成,其中滚动筛、内螺旋、外螺旋、轮式洗砂机、内轮式洗石机是在同一驱动轴上,构成砂石分离机的分离机芯,滚动筛内部绕有正螺旋带,外部绕有反螺旋带,两端分别安装轮式洗砂机和内轮式洗石机。在滚动筛转动的同时将导料槽导入的混凝土残渣筛分的同时把石料用内螺旋推入后端的内轮式洗石机,同时也把筛下去的沙子和水泥泥浆用外螺旋推入前端的轮式洗砂机,水泥泥浆则经过底仓的溢流口排出。

The main components of sand separator are: 1. 2. 3. on the bottom shell screen 4. 5. 6. wheeled spiral spiral sand washing machine 7. wheel washing machine consists of 10. electrical control system of the 8. gear box 9. motor 11. water supply system 12. guide groove, wherein the rolling sieve, inner screw and outer spiral, round type washing sand machine, wheel washing machine is on the same drive shaft, a separating core sand separator, a rolling screen is spiral belt around the internal, external wound with anti spiral belt, are respectively installed at both ends of wheel sand washing machine and wheel washing machine. At the same time rolling screen rotation will lead to concrete residue screening trough imported at the same time the stone with the inner spiral into the inner wheel at the rear end of the washing machine, but also to sift through the sand and cement slurry with the outer spiral pushed to the front wheel sand washing machine, cement slurry is discharged through overflow bin mouth.
